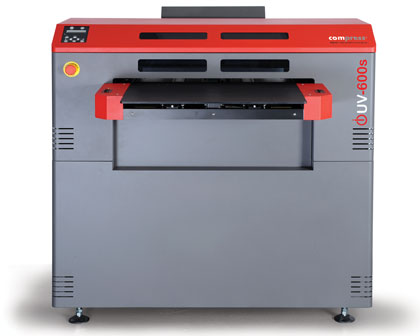

Compress iUV-600s Flatbed UV Printer

Cost-effective, on-demand colour printing on a wide range of substrates.



Compress UV LED technology is an entirely new small footprint flatbed UV printer that brings cost-effective, on-demand colour printing to the production floor for a multitude of substrates.



The Compress iUV-600s gives you the freedom to print exactly what you want onto virtually any substrate. All white Inks are pressurized and recirculated with filtering by our patent pending WIMS (white ink management system) for less downtime and ink issues in general.



Low maintanance. Production ready.

Features

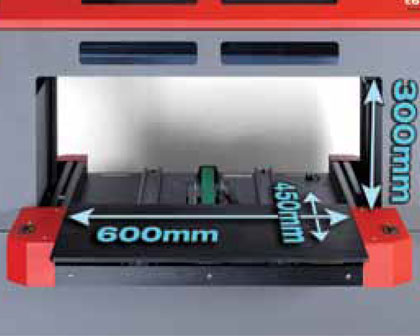

  • 600 x 450mm print area
  • 300 mm media height!
  • Print speeds up to 9m² per hour
  • Built in media height detection
  • Ink mist extraction
brochure
  •   print specs
  •   technical
  •   dimensions & size

Colour   CMYK, White and Varnish (optional)
Print Area   600mm x 450mm • 300mm media height
Inks   iUV LED pigmented UV-curable inks
Ink Delivery   Bottle – pressurised CYMK Bottle pressurised re-circulation – white (WIMS) with filtration

Print Head   Epson DX5 Piezo with interweave technology
UV Technology   Dual UV LED lamps
Electrical
AC 110-240V, 50-60Hz, 10A
Consumption – 55W or less, Standby – 5W
Off – 1W

Print Head   Epson DX5 Piezo with interweave technology
UV Technology   Dual UV LED lamps
Electrical
AC 110-240V, 50-60Hz, 10A
Consumption – 55W or less, Standby – 5W
Off – 1W

Dimensions
width - 98cm
height - 55cm
length - 127cm
Weight   92 kg (boxed weight will vary)
